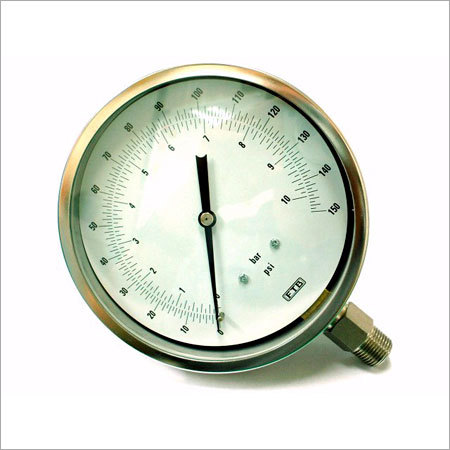

Pressure Gauges

Pressure Gauges
Pressure Gauges
Product Code : UHP-21
Product Description

Can be used in all applications where liquid and pneumatic media are not highly viscous or do not react with copper alloy systems, these Pressure Gauges are well known among our clients who are situated across the nation. In accordance with industry set standards, these gauges are manufactured from the well tested components and cutting edge technology by our reliable vendors. Quality is the main objective of our company hence we assure our clients that these gauges are best in terms of quality & durability. Apart from this, we provide these Pressure Gauges in different specifications and at nominal rates.

Features:

  • Application specific design

  • Easy installation

  • Precise dimensions

  • High durability

Specifications

  •     Standard Version: 40Mm, 50Mm, 63Mm, 80Mm, 100Mm, 150Mm, 250Mm

  •     Accuracy: + 1.6% Of F.S. (Above Ns 100Mm)

  •     : + 2.5% Of F.S. (For Ns 40Mm, 50Mm, 63Mm & 80Mm)

  •     Ambient Temperature: -20°C To + 60°C

  •     Process Temperature: Max .120°C

  •     Operating Pressure: 25% To 75% Of F.S

  •     Over Pressure Limit: Not Applicable


  1. Ranges: 0 To 1, 2, 4, 7, 10, 14, 21, 28, 35, 40, 70, 100, 140, 210, 280, 350, 420, 700, 1000, Kg/Cm2

  2. Connections: Bottom, Back, Back With Panel Mounting, Back With Mounting Bracket

  3. Thread Connections: 1/4",  1/2" (Bsp, Npt)

  4. All Ss Pressure Gauges/ Ss With Brass Internal Gauges

Specifications

Standard Version: 40Mm, 50Mm, 63Mm, 80Mm, 100Mm, 125Mm, 150Mm, 200Mm, 250.

  •     Accuracy  F.S For All Ss Pressure Gauges: + 1.6% Of F.S For Ss With Brass Gauges

  •     Ambient Temperatur: - 25°C To + 65°C

  •     Process Temperatur: Max 300°C For Ss Gauge

  •     Operating Pressure: 75% Of The Scale Value

  •     Over Pressure Limit: 30% For Pressure Ranges Upto 600Kg/Cm2

  •     For Ss Gauge 15% For Pressure Range Above 600 Kg/Cm2

  • Single Scale: 0 To 0.6, 1, 1.6, 2.5, 4, 6, 10, 16, 25, 40, 60, 100, 160, 250, 400, 600, 1000, 1400, 1600, Kg/Cm2.

  • Dual Scale: 0 To 1, 2, 4, 7, 10, 14, 20, 28, 35, 40, 70, 100, 140, 200, 280, 350, 400, 700, 1000, 1400, 1600 , Kg/Cm2.

  • Connections: Bottom, Back, Back With Panel Mounting, Back With Mounting Bracket.

  • Thread Connections: 1/4", 1/2" (Bsp, Npt).

  • Note: Available With And Without Glycerine Filled And Also Available In

  • Vaccum Gauges, Compound Gauges, Digital Pressure Gauges, Master Test Gauges

Differential Pressure Guages

  •     Standard Version: 100Mm, 150Mm

  •     Ranges: 0 To 250, 400, 600, 1000, 1600, 2500, 4000, 6000, Mmwc

  •     Type: Single Diaphragm , Double Diaphragm

  •     Connections: Bottom, Back, Back With Panel Mounting, Back With Mounting Bracket

  •     Process Connections: 1/4" Npt Female (Standard )

(1) Sealed Diaphragm Pressure Gauge (2) Electrical Contact Gauges

Dial Thermometers (Temperature Gauges)

  •     Dial: 63Mm, 100Mm, 150Mm, 250Mm

  •     Connection: Bottom, Back, Angle Type

  •     Type: Stem Type, Capillary Tube Type

  •     Model: Bi- Mettalic, Inert Gas Filled, Mercury-In-Steel, Connection: Bottom , Back.

  •     Process Connection: 1/2" (Standard)

  •     (Other Size Also Available On Your Request)

  •     Ranges: 0 To 50°C, 60°C, 80°C, 100°C Upto 650°C

Pressure Switches

  1.     Models: Ut Series, Cni Series, Z Series

  2.     Ut Series: Connection: 1/4" Bsp Female , Protection: Ip 32, Accuracy: + 2% Fsr Moc: Phosphor Bronze Bellows, Application:     Air , Oil & Water

  3.     Model No: Ut3, Ut6, Ut 10, Ut 16, Ut20, Ut30, Ranges: 0 To 3 Bar, 0 To 6 Bar, 1 To 10 Bar, 5 To 16 Bar, 5 To 24 Bar, 5 To 30 Bar.Cni Series: Connection:  Male Connection , Protection: Weather , Accuracy: + 1% Fsr

  4.     Moc: Die Cast Aluminium, Weather Proof To Ip 88, Application: Air, Oil & Water

  5.     Ranges: -1 To 0 Bar, 0 To 300Cm Wc, 0.1 To 1.1 Bar, 0 To 4 Bar, 0 To 6 Bar,  0 To 10 Bar, 1 To 16 Bar, 2 To 32 Bar, Model No: Cni-Vac, Cni  Cni- 1, Cni-3, Cni- 6, Cni-10, Cni-16, Cni-30.

  6.     Z Series: Type: Differential, Diaphragm, Accuracy: 1%, Range: -20 To 20M Bar, -40 To 40M Bar, 0.5 To 5M Bar, 3 To 20M Bar, 10 To 100M Bar, 25 To 250M Bar 40 To 400M Bar, 60 To 600M Bar, -1 To 0Bar, -0.5 To + 0.5 Bar, -1 To +1 Bar, - 1 To +2 Bar,  0.1 To 1.1 Bar, 0.2 To 2 Bar, 0 To 4 Bar, 0 To 10 Bar, 0.3 To 16 Bar, 2 To 25 Bar, 2 To 32 Bar, 2 To 40 Bar, 5 To 60 Bar, 10 To 100 Bar, 10 To 250 Bar, 10 To 400 Bar, 60 To 600 Bar

Transmitters Keller Make

  •     Pressure Transmitters

  •     Type: Threaded/ Flush Type/Flanged, Range: Vaccum Range: -760Mm To 0, 0 To 1 Bar, 2.5 Bar, 4 Bar, 6 Bar, 10 Bar, Upto 1600 Bar

  •     Accuracy: 0.5% (On Lowest Accuracy Also Available)

  •     Make: Keller

Temperature Transmitters (Head Mounted) Inor Make

  •     Type: Suitable For Rtd, Suitable For Thermowell.

  •     Output: 4 To 20M Amps

  •     Accuracy: 0.1% Of Span

  •     Make: Inor

Flow Switches

  •     Application: Water

  •     Process Connection:  Thread

  •     Switch Type: 1 Spdt

  •     Pipe: To Suit 1/2" To

  •     Voltage: 230V Ac

  •     Make: Waaree

Cable Float Switch

  •     Cable Length: 5 Mtrs. Long (Standard)

  •     Switch Type: 1 Spdt, 2Spdt

  •     Voltage: 230V Ac

  •     Make: Nivelco Make

Float Switches

  •     Type: Top Mounted, Side Mounted, Moc: Ss, Pp

  •     Switch Type: 1Spdt, 2Spdt

  •     Connection: 1/4" , 92 Sq.Pcd,  Flange Class 150

  •     Application: Water, Oil, Steam

Rtd, Thermocouple

  •     Rtd: Simplex, Duplex

  •     Thermocouple:  Type

  •     Temperature Range: -100 To 1500°C

  •     Type: Stem, Capilary

  •     Connection: 1/2" Male (Standard)

  •     Make: Waaree

Digital Controller With Indicator

(Waaree Make)

  •     Type: Temperature Indicator With Controller, Pressure Controller With Indicator

  •     Display: 3 Digit, 4 Digit, 6 Digit

  •     Dimension: 96 X 48 X 100 (Standard)

Magnehelic Gauges

  •     Dial: 100Mm

  •     Ranges: 6Mmwc, 10Mmwc, 25Mmwc 100, 250 Also Available Inches And Also Available On Request Ranges

  •     Process Connection: 1/4" Female Connection

  •     Accuracy: 2%

  •     Application: Air

  •     Make: Dwyer

Accessories

  •     Needle Valve: Size: 1/4"

  •     Connection: Threaded, Flanged Type

  •     Range: 0 To 150 Psi, 0 To 3000 Psi, 0 To 6000 Psi

  •     Moc: Cs, Ss

  •     Syphon: Type: Q Type, U Type

  •     Process Connection: 1/2" Male

  •     Moc: Ss, Cs

  •     Snnuber: Process Connection

  •     Moc: Ss
