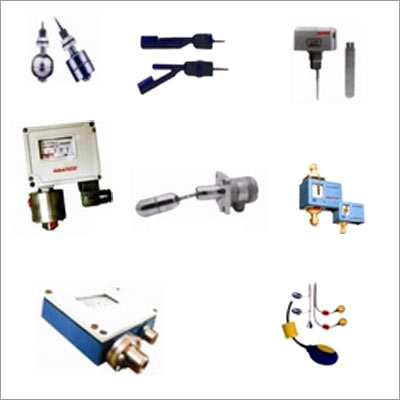

Pressure Switches

Get a Price/Quote

Pressure Switches Specification

Protection Level
IP65

Number of Module
Single

Circuit Type
SPDT

Automation Grade
Automatic

Mechanical Life
1,000,000 cycles

Response Time
30 ms

Finish Type
Coated

Rated Voltage
250 VAC

Max. Current
5A

Product Type
Pressure Switch

Material
Die Cast Aluminum

Insulation Resistance
100 M min. (at 500 VDC)

Contact Resistance
50 m max.

Max. Voltage
250 VAC

Stoke
1.8 mm

Size
Standard

Color
Grey

Weight
250 g

Mounting Type
Panel Mount

Current Rating
5A at 250 VAC

No Of Poles
Single Pole Double Throw (SPDT)

Pressure Switches Trade Information

Main Domestic Market
Andhra Pradesh, Karnataka, Kerala, Tamil Nadu

About Pressure Switches

Pressure Switches

The policy made by our company makes us engaged in supplying the best in class Pressure Switches. Specially designed to make contact either on pressure rise or on pressure fall, the offered switches are well known among our clients who are situated across the nation. At our vendor base, these switches are carefully manufactured from quality assured raw materials and the latest techniques in accordance with industry set standards. Keeping in mind the numerous choices of the clients, we provide these Pressure Switches in different specifications at most genuine rates.

Features:

Sturdy design
Easy installation
Lightweight and compact in size
Optional lockable protective cap to prevent tampering
Available with wetted parts to suit working media
Low on-off differentials

Specification

Model: Pressure Switch, DP Switch
Range: Vacuum Range, 0 to upto 600 bar
Application: air, water, chemical, chilled water, gas, oil,
Connection: 1/4, 3/8, 1/2. & flanged type
Enclosure: as per IP 66, 65, explosion proof to gas group II a, bc, c as per IS 2148
Accuracy: 1% and 2%
Deadband: Adjustable & Fixed
Switch: 1 SPDT, 2 SPDT

Durable Construction for Long-Term Use

Manufactured from coated die-cast aluminum, this pressure switch boasts durability and resistance to harsh industrial conditions. Suitable for panel mount installations, it is engineered for sustained performance, supporting up to 1,000,000 mechanical cycles, minimizing downtime and maintenance needs.

Reliable Performance and Safety

With IP65 protection and standard insulation resistance, the switch ensures safe operation even in environments with dust and water exposure. Its SPDT configuration and automatic function make it suitable for various control applications, while the fast response time enhances process efficiency and reliability.

FAQs of Pressure Switches:

Q: How do I install the pressure switch with panel mounting?

A: Ensure the panel mount location meets the standard size and accessibility requirements. Secure the switch using compatible fasteners, wire the SPDT terminals as specified, and verify alignment. Always follow manufacturer guidelines for safety and proper connection.

Q: What benefits does the die-cast aluminum body provide?

A: Die-cast aluminum offers robust protection against mechanical stress and corrosion, enhancing longevity and reliability in demanding environments. The coated finish provides additional resistance to moisture and industrial contaminants.

Q: Where can this pressure switch be used effectively?

A: This switch is suitable for automated control systems in manufacturing, utility management, and heavy industry. Its IP65 rating and mechanical durability allow placement in dusty or wet environments, including production floors and processing plants.

Q: What is the process for testing insulation resistance and contact resistance?

A: Insulation resistance can be tested using a 500 VDC megohmmeter, aiming for measurements 100 M. Contact resistance should be measured with a micro-ohmmeter, verifying the value does not exceed 50 m to ensure efficient electrical connectivity.

Q: When should the pressure switch be replaced?

A: Replacement is recommended after reaching its mechanical life of 1,000,000 cycles, or if you notice inconsistent performance, increased response times, or physical damage. Regular maintenance checks can extend service life.

Q: What advantages does SPDT (Single Pole Double Throw) offer in circuit integration?

A: The SPDT configuration allows for switching between two outputs from a single input, offering versatile control in automated systems. It enables seamless integration and flexible operation in complex processes.

Q: How does the IP65 protection level benefit usage in industrial applications?

A: IP65 protection shields the switch against dust ingress and water jets, ensuring reliability in harsh environments. It minimizes maintenance needs and protects internal components, enhancing the units operational lifespan.
