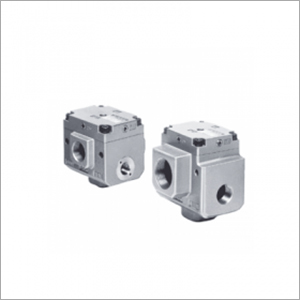

Buy 3 Port Air Operated Valve

Get a Price/Quote

Buy 3 Port Air Operated Valve Specification

Control System
Pneumatic Actuation

Material
Aluminium Body with Nickel Plating

Connection Type
Threaded End

Valve Size
Standard

Valve Type
3 Port

Features
Corrosion Resistant, Compact Design, Quick Response

Structure
Spool Valve

Voltage
Not Required (Air Driven)

Sealing
NBR Seals

Application
Industrial Automation, Pneumatic Systems, Machinery Control

Type
3 Port Air Operated Valve

Power
Pneumatic (Air Operated)

Pressure
0.15 0.8 MPa

Media
Air

Port Size
1/4 inch BSP

Temperature
-5C to 60C

Disc
Aluminium Alloy

Pin
3 Port

Actuation Mode
External Pilot

Internal Leakage
1 cm/min (at 0.8 MPa)

Body Finish
Hard Anodized

Lubrication
Not Required for Normal Operation

Mounting Type
Panel or Base Mounted

Ambient Humidity
5% 95% RH (Non-condensing)

Response Time
< 20 ms

Weight
Approx. 0.25 kg

Operating Life
Over 10 million cycles

Flow Direction
Universal

Buy 3 Port Air Operated Valve Trade Information

Main Domestic Market
Andhra Pradesh, Karnataka, Kerala, Tamil Nadu

About Buy 3 Port Air Operated Valve

With optimum capability and rich industry expertise, we have been able to emerge as a trusted supplier of Buy 3 Port Air Operated Valve. This valve is available in a body ported or base mounted style. Our skilled agents procure this valve from the most authentic vendors of the market. It's small profile increases design flexibility and minimizes space requirements. Innovative combination of space efficiency and performance superiority of this Buy 3 Port Air Operated Valve provides real value to the design solution. The valve utilizes a low power (0.5 watts standard) pilot solenoid design, which dramatically reduces thermal heat generation.

Features:

Improves performance
Decreases operating costs
Allows for direct control by PLC output relays

Robust and Versatile Valve Design

This air operated valve stands out with its hard-anodized aluminum body and nickel-plated finish, offering impressive corrosion resistance and operational durability. The universal flow direction makes it suitable for a wide range of industrial pneumatic setups, while the compact structure lends itself to space-constrained applications.

Efficient, Lubrication-Free Operation

No additional lubrication is needed for standard use, minimizing maintenance requirements. The valve ensures rapid actuationresponding in less than 20 millisecondsand maintains low internal leakage even at higher pressures for consistent, efficient performance.

Ideal for Industrial Automation Applications

With over 10 million cycles of operating life, this 3 port valve is purpose-built for integration in industrial automation, pneumatic control, and machinery systems. Its pneumatic actuation eliminates the need for electrical power, making it reliable even in stringent industrial environments.

FAQs of Buy 3 Port Air Operated Valve:

Q: How is the 3 Port Air Operated Valve installed in pneumatic systems?

A: The valve offers flexibility for both panel and base mounting, with standard 1/4 inch BSP threaded connections for straightforward installation into various industrial pneumatic circuits.

Q: What are the key benefits of using this valve in automation systems?

A: Key benefits include corrosion-resistant and durable construction, a quick response time under 20 ms, no need for lubrication in normal operation, minimal internal leakage, and long service life exceeding 10 million cycles.

Q: When should this valve be used over electrically actuated options?

A: This pneumatic valve is ideal in environments where electricity is inaccessible or undesirable, ensuring safe and reliable operation. Its particularly useful in applications prioritizing air-driven systems for machinery and automated processes.

Q: Where can I apply this 3 Port Air Operated Valve?

A: It is designed for use in industrial automation, machinery control, pneumatic systems, and other manufacturing environments where air-operated control is required.

Q: What is the process for maintenance and inspection?

A: Routine maintenance is simplified since the valve doesnt require regular lubrication. Periodically check for external contamination, standard wear, or any sign of abnormal operation for optimal performance.

Q: How does the valve ensure reliable sealing and media compatibility?

A: The valve uses NBR seals for optimal airtightness and compatibility with compressed air across a broad pressure range (0.15 0.8 MPa) and ambient temperatures from -5C to 60C.
