Air Filtration Regulators

Air Filtration Regulators
Air Filtration Regulators
Product Code : UHP-09
Brand Name : UNIVERSAL HYDRAULICS & PNEUMATICS
Product Description

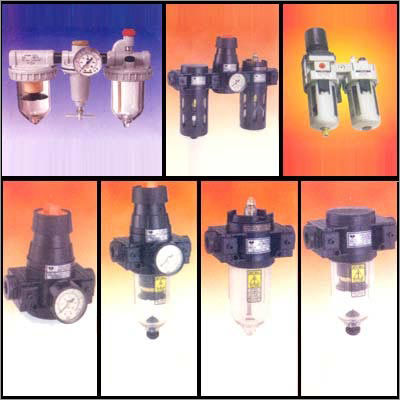

Air Filtration Regulators

Suitable for all general pneumatic applications, these Air Filtration Regulators are well known due to their high flow capacity and efficient lubrication. Manufactured from the finest quality raw materials and the latest machines, these regulators are also properly checked on predefined parameters of quality at the vendors’ end. In line with clients’ different choices, we provide these regulators in numerous specifications to choose from. Apart from this, we provide these Air Filtration Regulators to our clients at feasible rates.



Our range of Air Filtration Regulators and Lubricators available in following

  • Moister Seperature

  • Auto Drain Valve

  • Oil Removal Filter

  • Mist Filter

  • Water Filter

  • Air Drier

  • Water Cooler

  • Precision Regulator

  • Pressure Reducing Valve

  • High Pressure Air Regulator

  • Nitrajan Regulator

  • Arogon Regulator Filter

Features

  • Compact design saves space & cost

  • High Flow capacity

  • Choice of Filter elements

  • Standard 40 micron filter element

  • Optional 25 & 5 micron filter elements' Shatter-proof polycarbonate bowl with bowl guard standard

  • Bowl Capacity: 75Ãâہ¡ÃƒÆ’‚°c Standard

  • Maximum pressure of l0 bar at 50 for polycarbonate bowl

  • Aluminium metal bowl optional

  • Screw-on type bowl permits easy removal 7 installation

  • Maximum pressure of 17 bar at 80Ãâہ¡ÃƒÆ’‚°C for metal bowl

  • Minimum pressure drop

  • Efficient dust & moisture removal

  • Manual drain standard

  • Automatic drain optional

  • Threaded ports - BSP pipe threads standard - NPT & BSPT optional

  • Weight: 1075 grams Regulator.

Features

  • Balanced piston design for sensitive control

  • Design provides high flow capacity with low-pressure drop

  • Non-rising type low - torque finger tip control

  • Servicing possible without removal from air line

  • Simple locking arrangement of set pressure

  • Self-relieving for secondary pressure

  • Choice of secondary pressure ranges

  • 0-10 kg / cm2 standard

  • 0-7 kg / cm2 optional

  • 0-4 kg/cm2 optional

  • NPT gauge port on both sides standard

  • Maximum temperature: 800oC

  • Pressure gauge: optional

  • Weight: 1400 gms with pressure gauge 1260 gms without pressure gauge

Lubricator


Features

  • Efficient lubrication

  • Automatic oil drip feed rate proportional to flow

  • Large opening for easy oil filling

  • Full view transparent sight dome for oil feed rate indication

  • Precision needle valve for accurate oil feed rate adjustment

  • Standard bowl capacity: 19°cc.

  • Shatterproof polycarbonate bowl with bowl guard standard aluminium metal bowl optional

  • Maximum pressure of l0bar at 50° for polycarbonate bowl

  • Maximum pressure of 17 bar at 80° for metal bowl

  • Threaded Ports: BSP pipe threads standard

  • NPT & BSPT optional

  • Care must be taken to fill clean lubricating oil with adviscosity of 100 200 S.S.U. at 100°F (SAE 10 for most applications)

Filter Cum Regulator


Filter and Regulator are One Compact Unit

  • All other features of separate filter or regulator

  • Filter regulators for all general pneumatic applications.

  • High performance design provides high flow

All units are powder coated for excellent surface 3 finish and durability. All bodies are made from corrosion resistant pressure die cast aluminum alloy.
