General Purpose Pressure Gauges

General Purpose Pressure Gauges
General Purpose Pressure Gauges
Product Code : UHP-08
Brand Name : UNIVERSAL HYDRAULICS & PNEUMATICS
Product Description

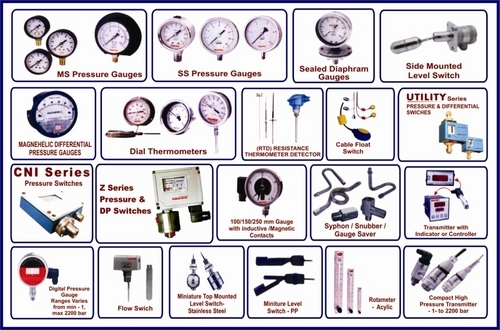

 General Purpose Pressure Gauges

WAAREE MAKE
MS PRESSURE GAUGES - GENERAL PURPOSE

SPECIFICATIONS:-
STANDARD VERSION:40mm,50mm,63mm,80mm,100mm,150mm, 250mm

  • Accuracy : + 1.6% of F.S. (Above NS 100mm)
  • : + 2.5% of F.S. (For NS 40mm,50mm,63mm & 80mm)
  • Ambient Temperature : -20 Deg.C to + 60 Deg.C
  • Process Temperature : Max .120 Deg.C
  • Operating Pressure : 25% to 75% of F.S
  • Over Pressure Limit : Not Applicable

Ranges: 0 to 1,2,4,7,10,14,21,28,35,40,70,100,140,210,280,350,420,700,1000,kg/cm2
Connections : Bottom, Back, Back with Panel Mounting, Back with Mounting Bracket
Thread Connections: 1/4",  1/2" (BSP, NPT)

ALL SS PRESSURE GAUGES/ SS WITH BRASS INTERNAL GAUGES

SPECIFICATIONS:
STANDARD VERSION : 40mm,50mm,63mm, 80mm, 100mm,125mm,150mm,200mm,250.


  • Accuracy  F.S for All SS Pressure Gauges : + 1.6% of F.S for SS with Brass Gauges
  • Ambient temperatur : - 25 Deg.C to + 65 Deg.C
  • Process temperatur : Max 300Deg.C for SS gauge
  • Operating Pressure : 75% of the Scale Value
  • Over Pressure Limit : 30% for Pressure Ranges upto 600kg/cm2
  • for ss gauge 15% for Pressure Range above 600 kg/cm2

Single Scale: 0 to 0.6, 1,1.6,2.5,4,6,10,16,25,40,60,100,160,250,400,600,1000,1400,1600,kg/cm2.
Dual Scale : 0 to 1,2,4,7,10,14,20,28,35,40,70,100,140,200,280,350,400,700,1000,1400,1600 ,kg/cm2.
Connections : Bottom, Back, Back with Panel Mounting, Back with Mounting Bracket.
Thread Connections: 1/4", , 1/2" (BSP, NPT).

Note: Available with and without Glycerine Filled and also available in

VACCUM GAUGES , COMPOUND GAUGES,DIGITAL PRESSURE GAUGES,MASTER TEST GAUGES

DIFFERENTIAL PRESSURE GUAGES

STANDARD VERSION : 100mm,150mm
Ranges : 0 to 250,400,600,1000,1600,2500,4000,6000, mmwc
Type : Single Diaphragm , Double Diaphragm
Connections : Bottom, Back, Back with Panel Mounting, Back with Mounting Bracket
Process Connections: 1/4" NPT Female (Standard )
Other Sizes Also Available on your Request and also available in

(1) Sealed Diaphragm Pressure Gauge (2) Electrical Contact Gauges

DIAL THERMOMETERS (TEMPERATURE GAUGES)
Dial : 63mm, 100mm, 150mm, 250mm
Connection : Bottom, Back, Angle type
Type : Stem Type, Capillary tube Type
Model : Bi- Mettalic, Inert Gas Filled, Mercury-in-Steel,Connection : Bottom ,Back.
Process Connection : 1/2" (Standard)
(Other Size also available on your Request)
Ranges : 0 to 50 Deg.C, 60 Deg.C, 80 Deg.C, 100 Deg.C upto 650 Deg.C

THERMOWELL ARE ALSO AVAILABLE

PRESSURE SWITCHES

Models : UT Series, CNI Series, Z Series
UT Series : Connection : 1/4" BSP Female , Protection : IP 32,
Accuracy : + 2% FSR MOC : Phosphor Bronze Bellows,
Application : Air , oil & Water
Model No : UT3, UT6, UT 10, UT 16, UT20, UT30,
Ranges : 0 to 3 Bar, 0 to 6 Bar,1 to 10 Bar, 5 to 16 Bar, 5 to 24 Bar, 5 to 30 Bar.

CNI Series : Connection :  Male Connection ,Protection : Weather , Accuracy : + 1% FSR
MOC : Die Cast Aluminium, Weather Proof to IP 88,Application : Air, Oil & Water
Ranges : -1 to 0 bar, 0 to 300cm wc, 0.1 to 1.1 bar,0 to 4 bar, 0 to 6 bar, 0 to 10 bar, 1 to 16 bar,2 to 32 Bar,Model No: CNI-VAC, CNI  CNI- 1, CNI-3, CNI- 6, CNI-10, CNI-16, CNI-30.
Z Series : Type : Differential, Diaphragm, Accuracy : 1%, Range : -20 to 20m Bar,-40 to 40m bar, 0.5 to 5m Bar, 3 to 20m bar, 10 to 100m bar,25 to 250m bar 40 to 400m bar, 60 to 600m bar, -1 to 0bar,-0.5 to + 0.5 bar, -1 to +1 bar,- 1 to +2 Bar, 0.1 to 1.1 Bar, 0.2 to 2 bar, 0 to 4 bar, 0 to 10 bar,0.3 to 16 bar, 2 to 25 Bar, 2 to 32 Bar, 2 to 40 Bar, 5 to 60 Bar,10 to 100 Bar, 10 to 250 Bar, 10 to 400 Bar, 60 to 600 Bar
If Any type of Special Ranges also available on your Requirement.

TRANSMITTERS KELLER MAKE
Pressure Transmitters:
Type : Threaded/ Flush Type/Flanged,
Range : Vaccum Range : -760mm to 0, 0 to 1 Bar,2.5 Bar, 4 Bar, 6 Bar, 10 Bar, Upto 1600 Bar
Accuracy : 0.5% (On Lowest Accuracy also Available)
Make : KELLER
Temperature Transmitters (Head Mounted) INOR MAKE :
Type : Suitable for RTD, Suitable for Thermowell.
Output : 4 to 20m amps
Accuracy : 0.1% of Span
Make : INOR
And also available in Differential Pressure Transmitters also

FLOW SWITCHES
Application : Water
Process Connection :  Thread
Switch Type : 1 SPDT
Pipe : To Suit 1/2" to
Voltage : 230V AC
Make : WAAREE

CABLE FLOAT SWITCH
Cable Length
: 5 Mtrs. Long (Standard)
Switch Type : 1 SPDT, 2SPDT
Voltage : 230V AC
Make : NIVELCO MAKE

FLOAT SWITCHES
Type : Top Mounted, Side Mounted,
MOC : SS, PP
Switch Type : 1SPDT, 2SPDT
Connection
: 1/4" , 92 Sq.PCD,  Flange Class 150
Application : Water, Oil , Steam
And also Available in ULTRASONIC LEVEL SWITCH & TRANSMITTER

RTD, THERMOCOUPLE
RTD : Simplex, Duplex
Thermocouple :  Type
Temperature Range : -100 to 1500 Deg.C
Type : Stem, Capilary
Connection : 1/2" Male (Standard)
Make : WAAREE
(Other Sizes also available on your Requirement)


DIGITAL CONTROLLER WITH INDICATOR
( WAAREE MAKE)
Type : Temperature Indicator with Controller,Pressure controller with Indicator
Display : 3 Digit, 4 Digit, 6 Digit
Dimension : 96 X 48 X 100 (Standard)
(Other Ranges also available on your Requirement)
(And also available in INFRARED
(Contact Type, Non-Contact Type)

MAGNEHELIC GAUGES
Dial : 100mm
Ranges : 6mmwc,10mmwc,25mmwc 100,250 also available inches and Also available on Request Ranges
Process Connection : 1/4" Female Connection
Accuracy : 2%
Application : Air
Make : DWYER

ACCESSORIES
Needle Valve: Size : 1/4" ,
Connection : Threaded, Flanged Type
Range : 0 to 150 PSI, 0 to 3000 PSI, 0 to 6000 PSI
MOC : CS, SS
Syphon: Type : Q Type, U Type
Process Connection : 1/2" Male
MOC : SS,CS
Snnuber: Process Connection :

MOC : SS
AND ALSO AVAILABLE IN GAUGE COCKS, MANIFOLDS
AND AVAILABLE IN ALL TYPES OF INDUSTRIAL
INSTRUMENTATION ITEMS
