Hydraulic Hoses

Get a Price/Quote

Hydraulic Hoses Specification

Cover
Synthetic Rubber, Abrasion and Weather Resistant

Medium
Hydraulic Oil, Water, Air

Reinforcement
High Tensile Steel Wire Braided or Spiraled

Shape
Round

Connection Type
Crimped Fittings

Material
Nitrile Rubber, Synthetic Rubber

Pressure
Up to 6000 PSI

Inside Diameter
6 mm to 50 mm

Outside Diameter
12 mm to 62 mm

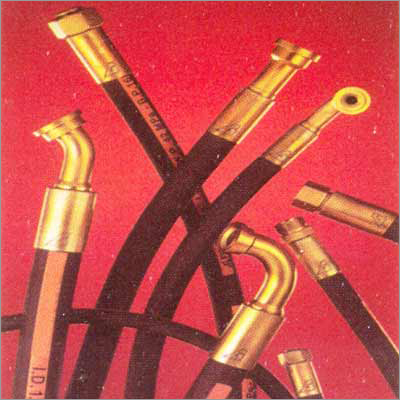

About Hydraulic Hoses

Our firm is instrumental in supplying an excellent quality range of Hydraulic Hoses. Our provided hoses are widely used in high pressure fuel lines, fuel oil, antifreeze solutions and air and water. At our vendor base, these hoses are manufactured using quality synthetic rubber and raw material and find their application in various industries. While manufacturing these hoses our vendors lay prime emphasis on their quality & durability. We provide these Hydraulic Hoses to our clients at most reasonable prices.

Features:

Crack resistance
Precise dimensions
High strength
Durability

High Pressure Hydraulic Hoses

Super Seal

Size: 1/4" To 2"
Pressure: 0 To 10000 Psi
Type: R1 (Single Wire Braided), R2 (Double Wire Braided), R3 (Raylon Braided), R6 (Textile Braided), I V SP and Iv SH (4 High Tensil Sprial Braided)
Temperature: 40^oC To 135^oC
Application: Air, Water, Hot Water, Hydraulic Oil and Industrial Application.

Steam Hose (Wire Braided)

Type: Single Wire ( 0 To 185^oC), Double Wire (0 To 220^oC)
Size: 1/4" To 2"
Pressure: 0 To 16 Kg/Cm²
Application: For Uses on Hi-Temperature Fluids and Steam.

Jack Hose

Size: 1/4", 3/8"
Pressure: 0 To 10000 Psi
Application: Hydraulic Jack Application Used With Jacking Systems.
Tube: Black Oil Resistant Synthetic Rubber.
Reinforcement: 2 High Tensile Steel Wire Braid.
Cover: Black, Oil and Abrasion Resistant Synthetic Rubber.
Temperature Range: -40^oC To 50^oC

Low Pressure Metal Braided Hose

Size: 1/4" To 2"
Type: Outer Metal Braided Inside Rubber Hose
Pressure: 0 To Maximum 400 Psi
Application: Low And Medium Pressure applications For Hydraulic Oil, Fuel, Lubricating, Oil, Water and Air.
Temperature: -40^oC To 120^oC

Robust Construction for High Pressure

Designed for rigorous working conditions, our hydraulic hoses withstand pressures up to 6000 PSI, ensuring safety and reliability in hydraulic systems. The inclusion of high-tensile steel wireeither braided or spiraledprovides excellent reinforcement to prevent hose deformation or bursting during intense operations.

Enhanced Durability and Flexibility

Covered with abrasion- and weather-resistant synthetic rubber, these hoses excel in challenging environments. Their flexibility allows for easy installation across a variety of industrial machinery, while crimped fittings offer strong, enduring connections with minimal risk of leakage.

Versatile Application and Compatibility

These hoses are compatible with hydraulic oil, water, and air, making them suitable for a wide range of applications. Whether in manufacturing, construction, or heavy equipment sectors, their reliable performance makes them the go-to choice for distributors and suppliers throughout India.

FAQs of Hydraulic Hoses:

Q: How are the hydraulic hoses manufactured to ensure durability and performance?

A: Our hydraulic hoses are made by reinforcing nitrile or synthetic rubber with high tensile steel wire, which is either braided or spiraled depending on the required pressure rating. This construction, combined with a synthetic rubber cover, provides exceptional resistance to abrasion, weather, and high-pressure conditions.

Q: What types of media can these hydraulic hoses handle?

A: These hoses are designed to carry hydraulic oil, water, and air, making them highly versatile for use in various hydraulic and pneumatic systems across industrial sectors.

Q: When should I choose a hose with spiral reinforcement over braided reinforcement?

A: Spiral-reinforced hoses are ideal for extremely high-pressure applications, typically found in heavy-duty hydraulic systems. Braided reinforcement is suitable for moderate to high pressures and offers more flexibility for standard industrial tasks.

Q: Where can I source these hydraulic hoses in India?

A: We serve as a leading manufacturer, supplier, and distributor of hydraulic hoses throughout India, offering a nationwide distribution network to fulfill both bulk and specialized requirements.

Q: What is the process for selecting the correct hose size and fittings?

A: Choose your hose diameter (ranging from 6 mm to 50 mm internally) based on your systems flow rate and pressure needs. Our hoses come with durable crimped fittings that ensure secure, leak-proof connections suitable for your specific application.

Q: How do these hoses benefit my hydraulic system?

A: Our hoses enhance the safety, efficiency, and longevity of your hydraulic equipment by delivering robust pressure resistance, flexible installation, and minimal maintenance due to their durable materials and weather-resistant cover.
