Hydraulic Valves

Get a Price/Quote

Hydraulic Valves Specification

Control System
Manual / Electric / Pilot Operated

Features
Leak Proof, Corrosion Resistant, Robust Design

Valve Size
DN06 to DN50

Connection Type
Threaded / Flanged

Valve Type
Hydraulic Control Valve

Application
Industrial Hydraulic Systems

Structure
Spool or Poppet Type

Power
Manual / Electric / Pneumatic (Based on model)

Pressure
Up to 350 bar

Media
Hydraulic Oil

Port Size
1/4 to 2 BSP/NPT

Disc
Metal / Synthetic (Model Dependent)

Hydraulic Valves Trade Information

Main Domestic Market
Andhra Pradesh, Karnataka, Tamil Nadu, Kerala

About Hydraulic Valves

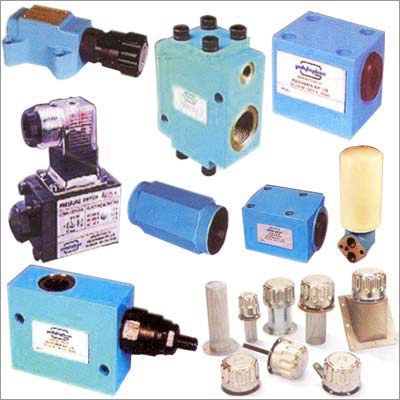

Hydraulic Valves

These Hydraulic Valves are well suited for hydraulic applications for controlling and regulating the high pressure liquids and gases. Professionals serving our vendors manufacture these valves by using quality assured raw materials and the latest technology. Quality is the main aim of our firm hence we assure our clients that these valves are stringently tested on numerous parameters by our vendors quality experts. Besides, we provide these Hydraulic Valves to our clients at most genuine rates within promised time frame.

Features:

Simple installation
Rugged design
High durability
Resistant against corrosion

Specifications:

Type: Solenoid operated valve, Hand valve & Pilot operated valve
Model: Cetop3, Cetop5, & Cetop 10
Flow Capacity: 0 to 63 LPM, 120 LPM & 300 LPM
Pressure Range: 0 to 315 Bar/700 Bar
Supply: 24VDC, 220VAC & 110VAC
Mounting: Sub Plate Type Spring Return

Valve & Detent Type Valve

Pressure Relief Valve

Type: Sub-plate, Threaded & Cartridge
Model: Size 06, 10 & 20
Flow Capacity: 0 to 30 LPM 80 LPM & 160 LPM
Pressure Range: 25, 50, 100, 200, 315, 400 & 700 Bar
Adjustment: With set screw & Lock Nut hand knob

Pilot Check Valve

Type: Sub-plate, Threaded
Model: Size 10, 20 & 30
Flow Capacity: 80 LPM , 160 LPM & 350LPM
Pressure Range: 0 to 315 Bar

Shuttle Valve

Type: Sub-plate & Threaded
Model: Size 06
Flow Capacity: 30 LPM
Pressure Range: 0 to 315 Bar
Port: 1/4 & 3/8 BSP

Check Valve

Type: Sub-plate & Threaded
Model: Size 06, 08, 10, 15, 20, 25 & 30
Flow Capacity: 10, 20, 30, 80, 120, 220 & 280 LPM
Pressure Range: 0 to 315 Bar
Port: 1/2" to 1-1/2" BSP3

Counter Balance Valve

Type: Threaded
Model: Size 10 & 20
Flow Capacity: 30 LPM / 115 LPM
Pressure Range: 0 to 315 Bar

Modular Type Pilot Operated Check Valve

Type: Modular
Model: Size 06 & 10
Flow Capacity: 35 LPM / 80 LPM
Pressure Range: 0 to 315 Bar

Pressure Switch

Type: Sub plate & threaded
Model: 1PS10/1PS
Flow Capacity: 10, 50, 100, 200, 350 & 420 Bar
Pressure Range: 0 to 315 Bar

Hydraulic Accessories Strainer

Type: Threaded (1/2" to 3)
Model: SCS-002 to SC3 -150
Flow Capacity: 0 TO 600 LPM
Filtration: 149 Microns/74/63/124 Microns - optional
Material: Aluminium Die Cast (SS MESH)

Level Gauge

Type: 'O' Ring type construction
Model: Size 03,05 & 10
It can be mounted on tapped holes
Non pressurized tanks only

Filter Breather

Type: Top Mounted / Side Mounted
Model: FSB-05/FSB-25
Flow Capacity: 0 to 720 LPM
Material: Chrome Plated Steel Cap

Return Line Filter

Type: Top mounted construction
Model: TIF2/CFR2/FIF/HFR/IFR/TIFP/SPF/RPF
Port: 1/2" to 1-1/2" BSP
Filtration: 10 Microns/25 Microns / 149 Microns

Versatile Control Options

These hydraulic valves offer diverse control mechanisms, including manual, electric, and pilot-operated varieties, allowing users to select the most suitable option for their application. Their adaptable designs make them ideal for integration into modern industrial hydraulic systems, providing both precision and reliability.

Engineered for Reliability and Durability

Constructed with high-quality metals and advanced synthetics, our valves deliver exceptional leak-proof and corrosion-resistant performance. The robust housings and carefully engineered sealing elements ensure long service life and minimal maintenance, making these valves a dependable choice for heavy-duty industrial settings.

FAQs of Hydraulic Valves:

Q: How do hydraulic valves function in industrial hydraulic systems?

A: Hydraulic valves regulate the flow and pressure of hydraulic oil within industrial systems, controlling actuators and other components. Depending on the model, they utilize spool or poppet mechanisms to precisely direct fluid, ensuring optimal system performance and safety.

Q: What port sizes and connection options are available for these valves?

A: Our valves are available in port sizes from 1/4 to 2 BSP/NPT and valve sizes from DN06 to DN50. Connection types include threaded and flanged configurations, enabling compatibility with different piping systems and system requirements.

Q: When should I use a spool-type valve versus a poppet-type valve?

A: Spool-type valves are often chosen for applications requiring precise directional flow control, while poppet-type valves are better suited for rapid opening and closing with minimal leakage. The choice depends on your systems operational demands and response needs.

Q: Where can these hydraulic valves be installed?

A: These valves are versatile and can be installed in a wide range of industrial hydraulic systems, such as manufacturing lines, process automation, and heavy equipment across facilities throughout India.

Q: What benefits do leak-proof and corrosion-resistant features provide?

A: Leak-proof and corrosion-resistant features ensure long-term operational reliability, reduce maintenance frequency, and prevent fluid contamination, helping to safeguard both equipment and worker safety.

Q: How do I select the appropriate control system for my application?

A: The control systemmanual, electric, or pilot-operatedshould be selected based on your applications level of automation, required response time, and environmental considerations. Consult our technical team for guidance tailored to your system.
